High output direct replacement LED bulb for wedge-base 25-watt halogen miniature lamps commonly used in aircraft wingtip position light applications. Proprietary design that is significantly brighter than the 25-watt halogen predecessor while only drawing 2-watts of power for a 90% reduction in power consumption.
Replacement for:
12V: A508-14 , #1991
28V: A508-28 , #1999
*WARNING: DO NOT INSTALL IN TAILFIN ASSEMBLIES WITH INTEGRATED STROBE LIGHT. THE EXTREME HEAT OF THE STROBE TUBE WILL DAMAGE THIS LED AND VOID RETURN/WARRANTY POLICIES
Part #: AL-508-3180
Light Color: Aviation White
Rated Voltage: 10-30VDC
Power: 2.0 watts (140ma @ 14.4VDC)
Luminous Flux: 350LM
Base Type: T10 Wedge (W2.1x9.5d)
Application: Aircraft Wingtip/Tail Rear Position Light WITHOUT integrated strobe light
Certification: Not FAA-PMA Approved.
top of page
Rating is 5.0 out of five stars based on 1 review
SKU: AL-508-3180
$32.00Price
bottom of page
Reviews

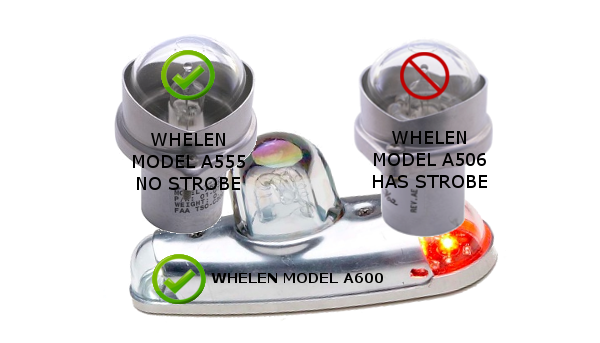

Fits perfectly into the rear nav light position in a Whelen A600 wingtip light assembly, replacing the original A508 halogen bulb.
I did have to remove the glass dome, install the LED array in the socket, then slip the glass dome back on because there is insufficient clearance in the housing to just “wiggle” the LED in.
It is MUCH brighter than the halogen bulb.
six+ hours running time so far. Only time will tell if this LED array will last longer than the original halogen.
