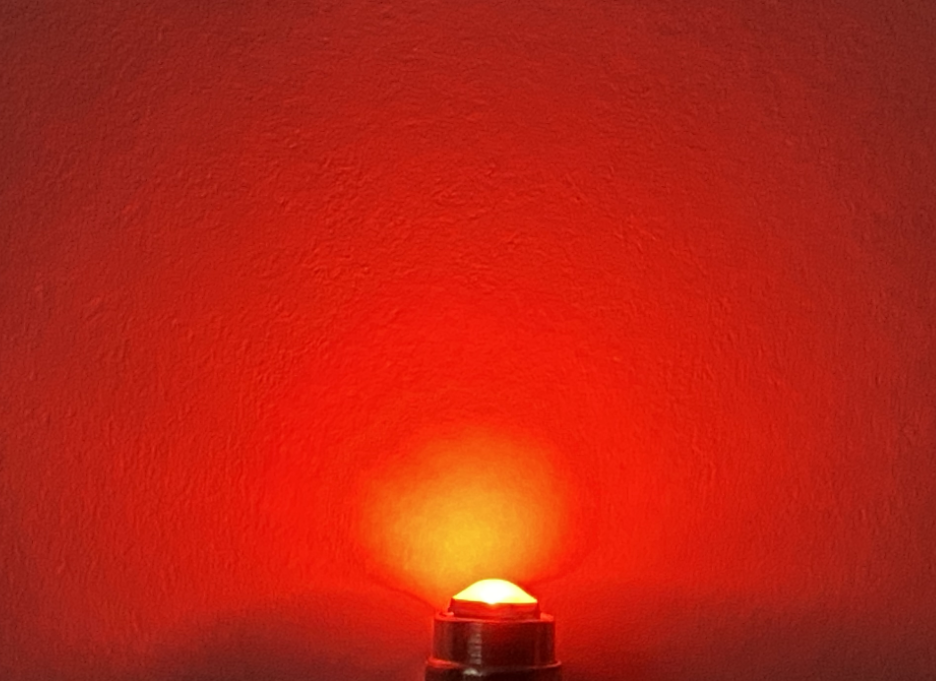

#330 Midget Flange LED Replacement - Flood | 12V

LED equivalent bulb for 12/14-Volt Single-Contact Midget Flanged filament bulbs, compatible with both DC and AC electrical systems. This led incorporates a single flood SMD (surface mount diode) with the chip height consistent with the filament height on the incandescent-style bulb; this allows the light to radiate in all directions for a balanced illumination suitable as a replacement for panel post lights as well as annuciation applications. This led is not sensitive to polarity and are dimmable (reduce input voltage = bulb dims, increase input voltage = brightness increases). Multiple light color variations to give you more application specific options. More total light output, no heat, virtually uses no power and projected life of over 30,000 hours. This is a simple, low-cost and long-term solution to more efficient and more reliable lighting compared to the inefficient failure-prone incandescent variants.


Save $$ by ordering multi-packs


Hint: General rule is to match the light color to the lens color for indicator application.


Filament cross reference: #330 , #382 , #394 , WL-330 , 382AS10 , 472-037 , 472-054 , MS25237-330 , 12000-0009 , MOPAR #9423277


    #330 Midget Flange LED Replacement - Flood | 12V

    PriceFrom $5.69
    • Specifications:

      VOLTAGE: 14-Volt AC/DC
      CURRENT: 30mA; 0.42watts
      BULB SHAPE: T1 3/4
      BASE: S.C. MF
      POLARITY: Bi-Polar
      DIMMING: Yes; Voltage Dependent
      LENGTH: 0.50"
      DIAMETER: 0.24"
      LIGHT COLOR: Bright White, Warm White, Red, Green, Blue
      APPLICATIONS: Aircraft, Annuciator,  Indicator, Flashlight
      RATED LIFE(hrs): 50,000
      CROSS REFERENCE: 330, 382, 394, 472-037, MS25237-330, 472-054,12000-0009
