ULTRA G2™ Series - PAR36 LED Landing / Spot Beam (3,200lm)



3,200 lumen high-performance LED PAR36 sealed beam replacement lamps. No excuses fit that conforms to virtually all PAR36 critical parameters Including form, fit & function.  Our customer base demands guaranteed no excuse fit, RFI/EMI-free aircraft grade components consistent with lamps many times the cost. Extreme brightness at up to 3,200 lumens, low current draw, and low radiant heat.

*Not FAA-PMA/TSO approved



Advanced SmarTemp Technology  -  Proprietary temperature-dependent intensity decrement circuitry.

Up to 3,200 effective lumens lighting your way. Continuously variable current regulation as one of the brightest drop-in led replacement PAR 36 bulb in the market. By selling direct to consumers, we are able to offer this high performance lamp for a fraction of the cost of competitors, while providing industry leading in-house customer support.



Replaces ANSI Bulb Codes:

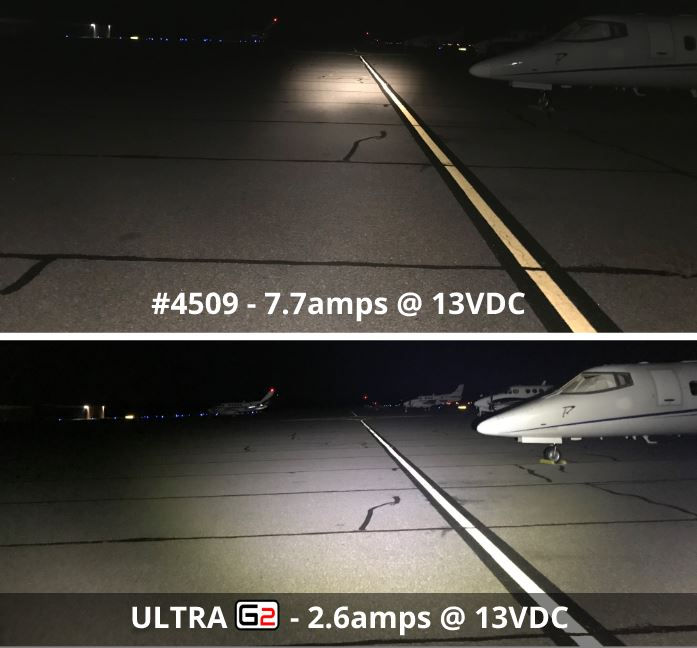

Spot Beam: 4505, 4509, 4509X, 4509Y, Q4509, Q4631, Q4632, 4313, 4591, 4594, 4595, 4596, 4713, H7604

Applications: Aircraft Landing, Aircraft Taxi, Agriculture, Heavy Equipment, Marine, Off-Road, Driving Lights, Rotating Beacons

ULTRA G2™ Series - PAR36 LED Landing / Spot Beam (3,200lm)

SKU: PAR36L204
$138.00Price
  • Technical Specifications:

    PART #: PAR36L204 Rev.A
    ANSI SIZE: PAR36 (4.5" dia)
    VOLTAGE: 10-30VDC
    WATTAGE: 100-250W equivalent
    CURRENT: 2.80A @14V; 1.45A @28V
    LUMENS: 3,200
    EMITTERS: 12PC - 5WATT CREE XP-E
    BEAM DIVERGENCE: Spot: 10° x 10°
    LIGHT COLOR: 5,700K
    POLARITY: Negative Ground; Reverse Current Protection
    THERMAL PROTECTION: SmarTemp - Temperature Dependedent Intensity Decrement
    COMPOSITION: Powder Coated Aluminum Alloy housing; PMMA Optic, UV Resistant PC Lens
    DUTY CYCLE: Continuous, Flasher Compatible
    TRANSIENT VOLTAGE SUPPRESSION: Yes
    APPROVALS: *NOT FAA/PMA APPROVED
