The Evolution series rear position/anti-collision strobe assembly is a true-to-form, direct replacement for legacy tail position lights with standard bayonet incandescent bulb. Each assembly incorporates a constant-on white position light circuit as well and a high intensity flashing strobe/anti-collision light circuit, which until now was only available with costly and heavy aftermarket assemblies that require remote mounted high-voltage power supplies that are notorious for adding radio interference to communications equipment.

The Evolution LED assemblies are engineered to the exact dimensions as legacy fixtures (nav only or nav/strobe combo) to ensure perfect fit which eliminates any extra drilling or time consuming paint touchup and/or bodywork.



Mounting Hardware:

To aid in the installation, each light assembly is supplied with both #4-40 and #6-32 stainless steel machine screws/ny-lock nuts. Note: if either of these options is not approriate for your application, customer supplied hardware is necessary.



NOTICE: THIS PRODUCT IS NOT APPROVED OR INTENDED FOR INSTALLATION ON CERTIFIED AIRCRAFT





  • Integrated anti-collision strobe - instantly add safety/visibility enhancing strobes without the hassle of heavy, power hungry remote mounted strobe power supplies.
  • Direct replacement fixtures - eliminates extra drilling and paint/bodywork time and cost.
  • Eliminate recurrent maintenance time/cost - designed to perform for thousands of hours which eliminates time and cost associated with legacy filament bulbs and strobe tubes/power supplies.
  • Extreme LED brightness - many times  brighter than legacy filament products.
  • Low current - Brighter, but draws a fraction of the current of the legacy nav and strobe lights
  • No external power supplies - Reduces weight. Requires only power (12V Only) and ground with optional sync wire for strobe syncronization if desired).
  • EMI/RFI-Free - No more frustrating audio noise from high current and/or high voltage strobe power supplies.
  • Low voltage - only requires buss voltage, which eliminates chances of elecrical shock from high voltage power supplies while performing maintenance.

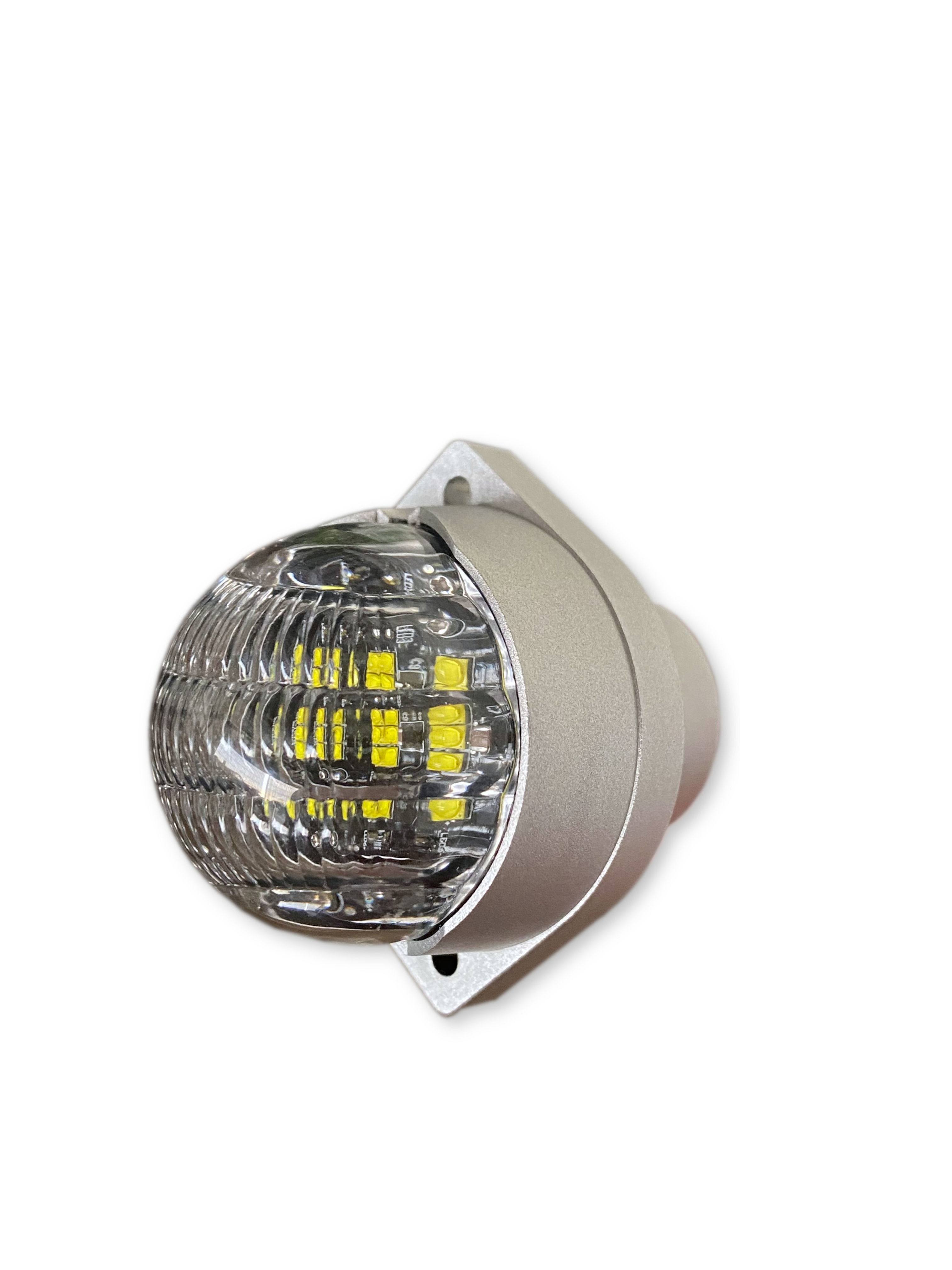

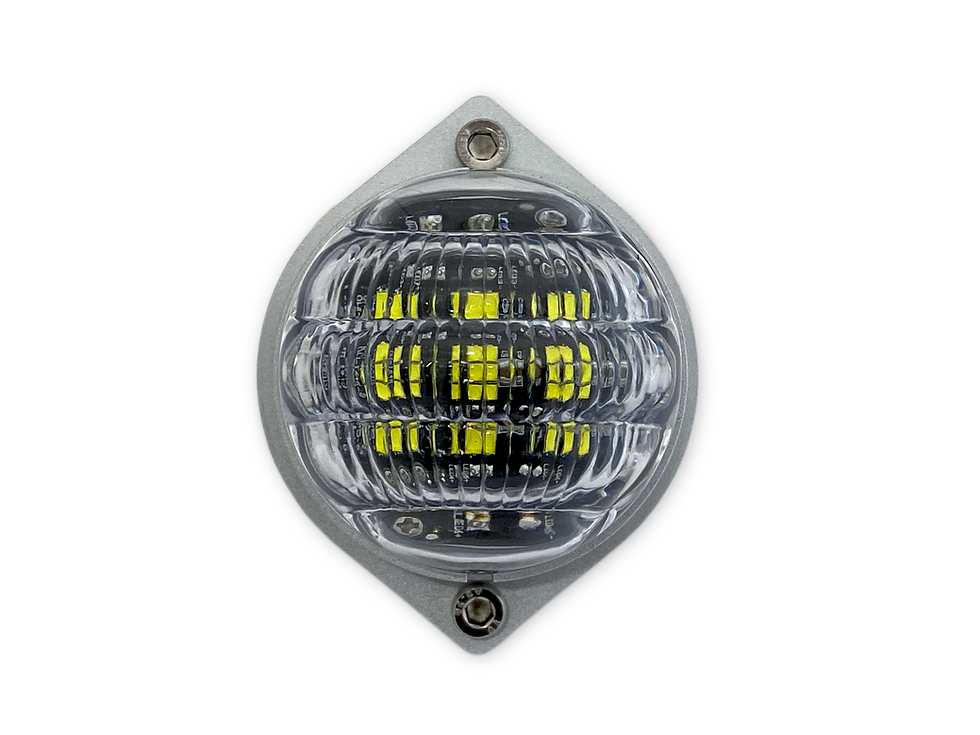

Evolution Series - LED Tail Position/Strobe Assembly

Rating is 3.0 out of five stars based on 1 review
SKU: AL-EV14NS-W
$198.00Price
Quantity
  • Specifications:

    Voltage: 10.5~15 Volt DC
    Power:

    Nav: 0.62amps  (8.68watts)

    Strobe: 1.12amps Peak; 0.40 Avg

    Dimensions: 2.17"L x 1.71W x 1.50H
    Weight: 2.6oz
    Peak Intensity: Nav: 230cd | Strobe: 425cd
  • Downloads:

Reviews

Rated 3 out of 5 stars.
Based on 1 review
1 review

  • Ron DJun 01
    Rated 3 out of 5 stars.
    Verified
    Shipping

    The light is wonderful and bright. The only issue I have is I had to pay over $100 for three day shipping. It took 3 weeks. When I contacted the company there was no response.
